Genetic Tools Atlas

Genetic Tools Atlas Background

The Genetic Tools Atlas (GTA) is a searchable web tool representing information and data on enhancer-adeno-associated viruses (enhancer AAVs) and mouse transgenes characterized at the Allen Institute for Brain Science. The GTA offers characterization of a large genetic toolkit for selective gene expression in brain cell types of interest.

Access Genetic Tools Atlas  Submit feedback Access tutorial Frequently Asked Questions (FAQs)

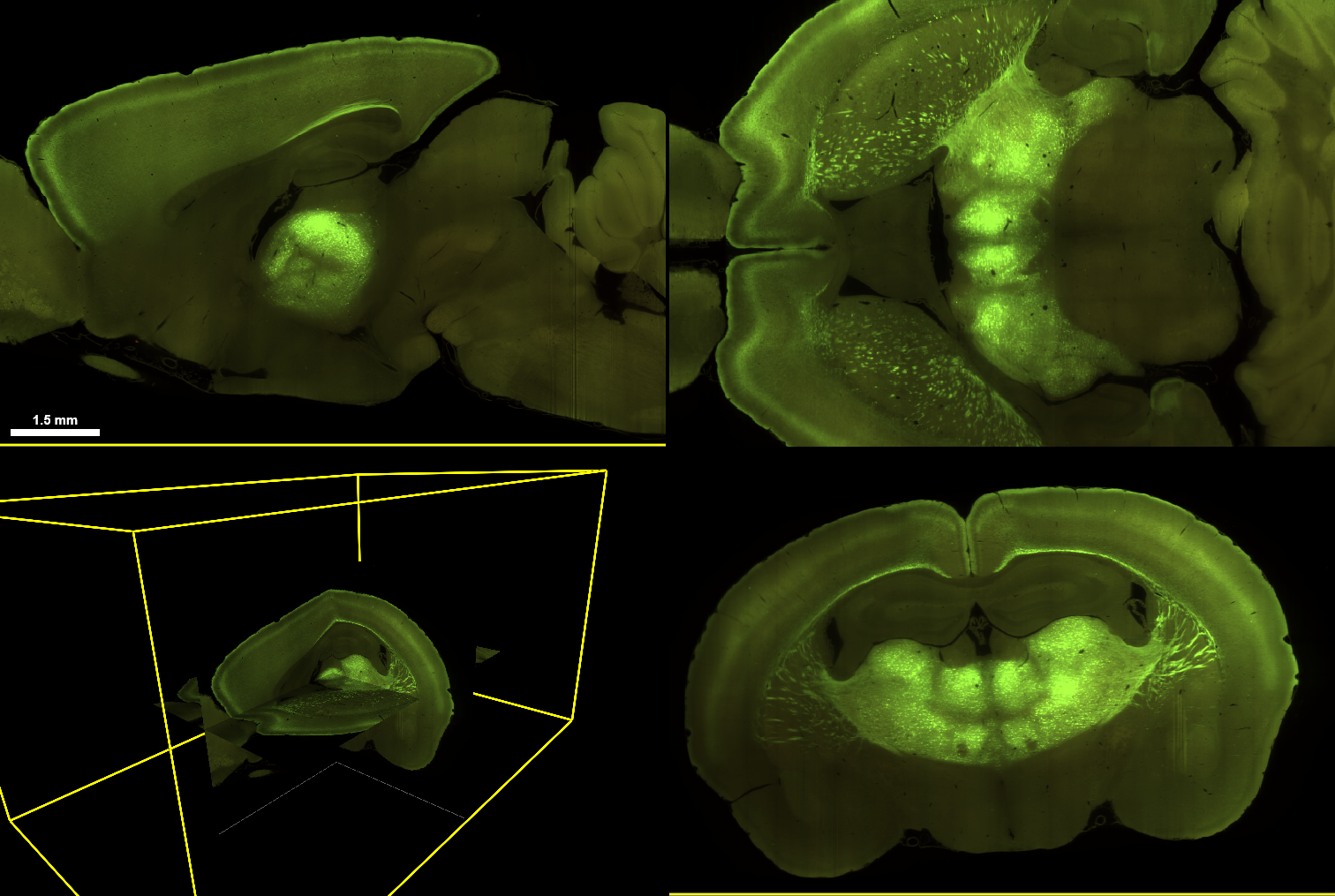

Genetic Tools Atlas Release 2.0

This release features a new browsing layout and adds over 3,100 new in vivo mouse expression datasets. It includes characterization of several dozen transgenic mouse lines and more than 1,700 adeno-associated viruses (AAVs), representing over 1,000 cortical cell type enhancers and more than 400 basal ganglia (BG) cell type enhancers. Most experiments used retro-orbital (RO) injection for virus delivery; a smaller subset used stereotaxic (STX) or intracerebroventricular (ICV) injections.

Further improvements include:

  • Snapshot feature in Neuroglancer.
  • Addition of the target cell population for each enhancer AAV (based on maximum chromatin accessibility) within the target brain region. Note that this may be different from the labeled cell population, which represents the experimental result.
  • Card view organization of metadata associated with each genetic tool.
  • Links for viewing collections of genetic tools via the Allen Institute’s BioFileFinder (BFF). This resource organizes and displays all the visual- and metadata in the GTA, in addition to scRNA-seq data which is currently not included there.

Genetic Tools Atlas Release 1.0

This release focuses on enhancer AAVs designed to drive selective gene expression in cell types comprising the basal ganglia. This evolutionarily conserved circuit is composed of several interconnected brain structures, which are critical for motor and reward functions. Dysfunction of this circuit is known to be central to numerous brain disorders including Parkinson’s and Huntington’s disease. Future releases will include enhancer AAVs for targeting various cell populations in other regions of the brain, including cortex, thalamus and the hippocampal formation.

This is the first release of the Genetic Tools Atlas, and user feedback will drive further development. We welcome your input and invite you to fill out the feedback form above!

Use of this application is covered under the Allen Institute Terms of Use. We wish to acknowledge funding support from the NIMH grant UF1MH128339 and thank our collaborators at Addgene and the University of Washington.

For the best user experience, we recommend using Chrome browser and a computer mouse. We also encourage you to familiarize yourself with the Neuroglancer image viewer controls.

Download Release 1.0 CSV data snapshot

Genetic Tool Types

ENHANCER AAVs

Enhancer AAVs contain short genomic regulatory sequences (enhancers) that, in combination with a minimal promoter, drive expression of a chosen genetic cargo. In our collection, most enhancers were selected from the genome based on their differential chromatin accessibility across different cell types, which is indicative of a possible role in cell type-specific regulation of gene expression. Most of our enhancers were derived from the mouse, human, and macaque genomes and were evaluated following delivery to the mouse brain. We used the retro-orbital (RO) delivery to young adult mice, intracerebroventricular (ICV) to newborns, or stereotaxic (STX) injection to adult mice.

Each Allen institute Enhancer (AiE) is given a unique 4-digit identifier, followed by an indication for the species of origin (mouse (m), macaque (q), or human (h)). Some enhancers were bashed into fragments, or “Cores”, and a new sequence was constructed by concatenating each Core three times. These sequences contain a suffix denoting the number of the Core (1, 2 or 3) and the number of times the Core was repeated. Plasmids for enhancer AAV production that have been deposited to Addgene have Addgene IDs. Please reach out to Addgene technical support for availability timelines.

Mouse transgenes

Transgenic mouse lines are created by inserting an exogenous DNA sequence (e.g. fluorophore, recombinase, or transcription factor) into the mouse genome. Knock-in transgenic mice are usually created by inserting a single copy of exogenous DNA at a specific position, frequently within a marker gene in the genome. This approach takes advantage of the endogenous regulatory elements in the genome to enable selective expression of various transgenes for cell labeling, monitoring, and/or perturbation. The knock-in transgenes frequently produce expected cell-type labeling, which corresponds to the expression pattern of the marker gene, but their efficiency, specificity, and strength, even in the same locus, can vary depending on the exact components inserted. This contrasts with randomly integrated transgenes, where the endogenous elements have been taken out of context and inserted randomly in the genome. Randomly integrated transgenes produce various expression patterns depending on their size, the regulatory elements included, the copy number inserted, as well as the insertion site, which is frequently unknown.

In most cases, transgenes can be classified as drivers or reporters based on the cargo they express. Driver transgenes express exogenous recombinases or transcription factors. Reporter transgenes express easily detectable ‘readout’ (e.g., fluorescent protein) when crossed to a driver. We characterized driver lines by crosses to appropriate reporters (see table below) and imaging with Serial Two-Photon Tomography (STPT). The imaging pipeline generates high-quality images in three channels, often requiring adjustments to visualize signals in the expected channel.

Reporter line name in GTA Name reported by investigator in JAX Fluorophore Color Recombinase JAX Stock
Ai14(RCL-tdT)

Ai14

tdTomato

Red

Cre

007914

Ai193(TICL-EGFP-WPRE-ICF-tdT-WPRE)-hyg Ai193 EGFP Green Cre 034111
    tdTomato Red Flp
Ai224(TICL-nls-EGFP-ICF-nls-dT)-hyg Ai224 EGFP (nuclear) Green Cre 037382
    dTomato (nuclear) Red Flp
Ai195(TIT2L-GC7s-ICF-IRES-tTA2)-hyg

Ai195

GCaMP7s

Green

Cre+Flp

034112

Ai210(TITL-GC7f-ICF-IRES-tTA2)-hyg

Ai210

GCaMP7f

Green

Cre+Flp

037378

Ai65(RCFL-tdT)

Ai65D

tdTomato

Red

Cre+Flp

021875

Ai65F(RCF-tdT)

Ai65F

tdTomato

Red

Flp

032864

RCE-FRT

RCE:FRT

EGFP

Green

Flp

010812

RCFL-H2B-EGFP

HG dual

EGFP (nuclear)

Green

Cre+Flp

028581

RCL-H2B-GFP

LSL-h2b-GFP

EGFP (nuclear)

Green

Cre

036761


Data Modality Summaries

Epifluorescence imaging (EPI)

EPI datasets consist of five 30 µm-thick sagittal sections distributed along the medio-lateral axis of the mouse brain, imaged with an epifluorescence microscope. In most experiments, enhancers are used to drive expression of SYFP2 (green), with DAPI (blue) and PI (red) providing nuclear/cytoplasmic counterstain. In experiments where the enhancer drives a recombinase, the signal will depend on the recombinase reporter and the interfering counterstain will be omitted (e.g. if a tdTomato-expressing recombinase reporter was used, PI stain was omitted).

Serial Two-Photon Tomography (STPT)

STPT datasets are produced by serial sectioning of an intact brain at 100 µm-intervals along the coronal plane, followed by two-photon imaging of the exposed surface. The resulting dataset is a series of coronal images at high resolution that enable evaluation of the brain regions and cell populations labeled across the entire mouse brain.

Single Cell/Single Nucleus RNA-sequencing

Single cell or single nucleus RNA-sequencing (sc/snRNA-seq) is used to determine the transcriptomic identity of labeled cells. In this approach, following virus administration, a region of interest (ROI) is dissected, and the tissue is dissociated for isolation of individual labeled cells/nuclei with FACS. After RNA-sequencing with Smart-seq v4 (SSv4) and next generation sequencing, the transcriptome of each cell is mapped to the transcriptomic cell type taxonomy most relevant to the dissected ROI. The proportions of cells/nuclei mapped to each of the region’s cell types are determined. This approach provides a detailed transcriptomic characterization of the labeled cells, but it can be prone to biases, which stem from the relatively small number of sequenced cells, as well as differential sensitivity of cell types to the dissociation and sorting process.
